Rosette Nebula

NGC 2237 – Rosette Nebula

Posted on

rosettefinal

Four frame mosaic  x (Ha 21 x 20m,  SII 10 x 30m, OIII 10x 30m)

rosettefinalcerosettefinalhanrosettefinalcc

rosettefinaln

Rosette Mosaic Final

Posted on

Rosette Mosaic in Ha
Rosette Mosaic in Ha

Making the Rosette Nebula Mosaic

Posted on Updated on

My imaging field of view is 1.37° x 1.03° (more on this here), which is very limiting when targeting large nebula. As you can see below, My image of the Rosette Nebula is too contained. The nebula has no room to “float” in space.

NGC 2237 Rosette Nebula - distance 5,200 light years

I wanted a 2°x 2° image so my options were either a smaller telescope or a mosaic.


If you are new to astrophotography, I strongly recommend you start with Starizona’s guide to imaging.


Planning the Mosaic

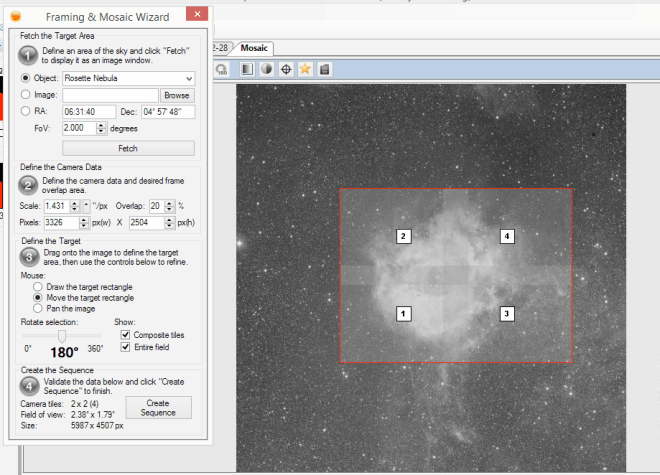

To create the  2°x 2° mosaic of the Rosette Nebula in narrowband I used Sequence Generator Pro‘s Framing and Mosaic wizard. With some rotation, I was able to fit nebula in the 2×2 frame mosaic.

Frame and mosaic

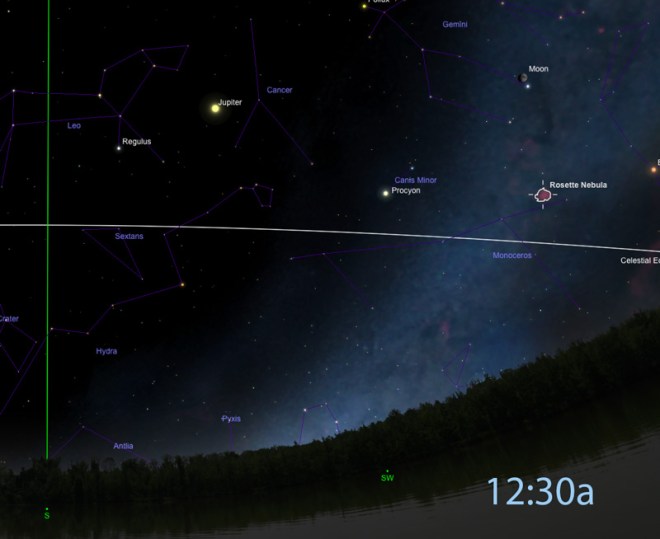

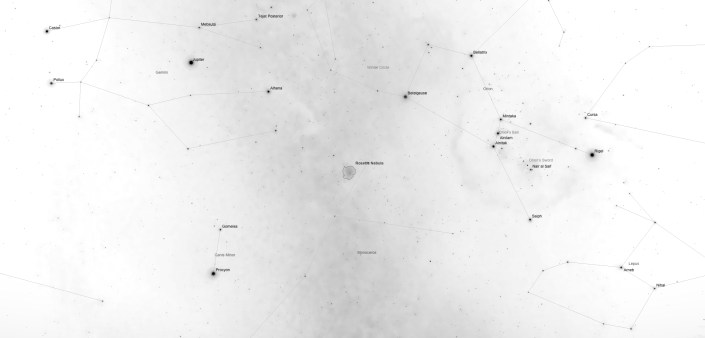

The planning session in Skysafari estimated roughly 5 hours or imaging per night (less with the ever time consuming meridian flip)

b a


Imaging Sessions

Light pollution: Bellevue is a city. Is rank 7-8 in the Bortle Scale.  For a light pollution map go here. For a great article about the effects of light pollution on astrophotography go here. I will be using Narrowband filters Ha, OIII and SII.  In previous attempts I had good results with 20 minute exposures in Ha and 30 minute exposures in OIII and SII.

Number of frames: Astro images straight out of the camera tend to be noisy. The Signal to Noise Ratio (SNR) of an image can be increased in post processing using image integration (combination) . Post processing requires multiple images of the same object (Light frames or subs), and multiple calibration frames (Bias, Darks, Flats).  More here.  A very effective image integration algorithm is Winsorization but it requires at least 8 frames per filter. (For a deeper dive on image integration go here.)

Time, time, time:  In the section above I determined that I have a 5 hour imaging window. Prior to the first image of the night, the telescope has be focused, find where it points to the sky, calibrate its autoguider, then slew to the target, center, rotate, focus again, wait for the autoguider to settle and then start imaging. That routine averages 10 minutes and takes away from pure imaging. Another time sink is a meridian flip, a maneuver by the mount to reposition the telescope on the target when it crosses the Meridian. After a flip which usually takes 2-5 minutes all the startup steps apply so the overall cost is 12-15 minutes. That cuts the imaging window to 4 hours and 30 minutes.

Overall:

Ha = 8 subs  x 20m x 4 mosaic frames   ~ 11 hours    ~ 3 nights

OIII = 8 subs  x 30m x 4 mosaic frames  ~  16 hours  ~ 4 nights

SII = 8 subs  x 30 m x 4 mosaic frames  ~  16 hours  ~ 4  nights

The minimum number of imaging sessions is 8 nights. That is… 11 clear February/ March nights in Seattle.

Global warming to the rescue “Seattle sets twin records for warmest February, winter on record


Starting with Ha

January 28-29th, 2015 :  8 x 20 min subs of the central region

Cnt

February  22-23rd , 2015 : 8 x 20 min subs of top right and left areas

TL TR

February 23-24th , 2015 : 8 x 20 min subs of the bottom right and left areas

BL BR

Due to a probable but yet unidentified user error, the bottom frames were not overlapping with the top. So the first mosaic attempt had some missing areas

MergeMosaic

March 1st, 2015: 8 frames of the missing left side

mlmr

The two extra frames added 3 more nights imaging in order to have all the necessary frames. But the Mosaic is complete

2015-03-11-RosetteF

Rosette Nebula Mosaic v2

Posted on Updated on

Rosette Nebula
Rosette Nebula
Rosette Nebula Cropped
Rosette Nebula Cropped
Rosette Nebula colorized
Rosette Nebula colorized

Adding the missing frames

Rosette Nebula Mosaic

Posted on Updated on

Rosette Colorized
Rosette Colorized
Rosette Nebula
Rosette Nebula

frames : This is a composite of 5 sections x  HA x 8 x 20m

Rosette Nebula in Hubble Palette

Posted on

NGC 2237 Rosette Nebula - distance 5,200 light years
NGC 2237 Rosette Nebula – distance 5,200 light years

frames:  Ha x 6x 15m and 5 x 20m, OIII x 4 x 20m and 2 x 30m, SII x 1 x 20m and 3 x 30m

The OIII and SII frames are mostly noise. Need more time

mix :SHO + LRVB with H being light

Rosette Nebula

Posted on Updated on

NGC 2237 Rosette Nebula - distance 5,200 light years
NGC 2237 Rosette Nebula – distance 5,200 light years

frames:  Ha x 6x 15m, OIII x 4 x 20m, SII x 1 x 20m

mix : R = 85% H + 15%S, G= 15%H +85%O, B=0
